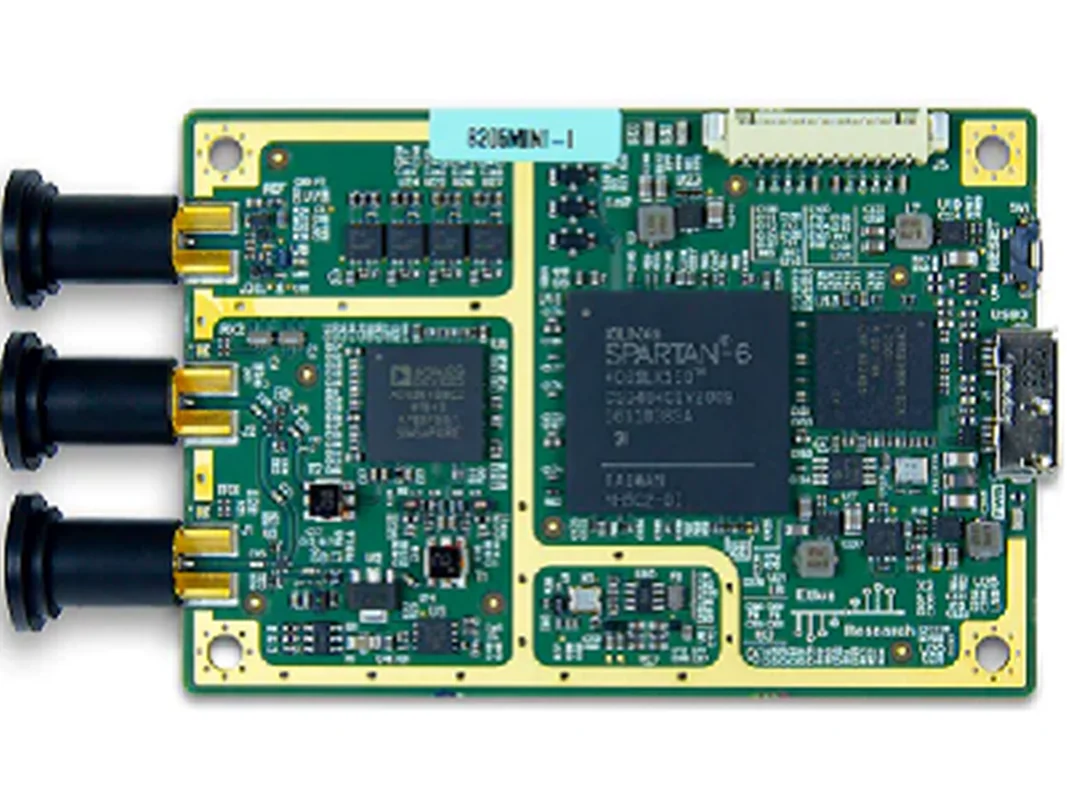

USRP B200mini-i
Z101A-USRP B200mini-i
- شرکت سازنده: Digilent
- نام کارخانه ای: USRP B200mini-i
- نام آراس الکترونیک: Z101A-USRP B200mini-i
- زیر مجموعه: Software Defined Radio
- کیفیت قطعه: اصل
- قیمت محصول ($): 2100$
OverviewThe USRP™ B200mini-i delivers a 1×1 SDR/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable, industrial-grade Xilinx Spartan-6 XC6SLX75 FPGA, this flexible and compact
Features
Wide frequency range: 70 MHz – 6 GHz
Up to 56 MHz of instantaneous bandwidth
Full duplex operation
User-programmable, industrial-grade Xilinx Spartan-6 XC6SLX75 FPGA
Fast and convenient bus-powered USB 3.0 connectivity
Synchronization with 10 MHz clock reference or PPS time reference
GPIO and JTAG for control and debug capabilities
Full aluminum enclosure
83.3 x 50.8 x 8.4 mm form factor
USRP Hardware Driver™ (UHD) open-source software API version 3.9.0 or later
GNU Radio support maintained by Ettus Research™ through GR-UHD, an interface to UHD distributed by GNU Radio
